Cassette 1x16 PLC Splitter LGX 1 Input 16 Outputs With SC APC Adapter

  • 1
  • 2
  • 3

Brand Name : DAMU

Model Number : LGX PLC

Certification : CE

Place of Origin : CHINA

MOQ : 2pcs

Supply Ability : 20000pcs/day

Packaging Details : carton pallet

TYPE : LGX(Insertion type)

connector : SC/APC

FIBER : G657A

adapter : 1 input 16 output SCAPC

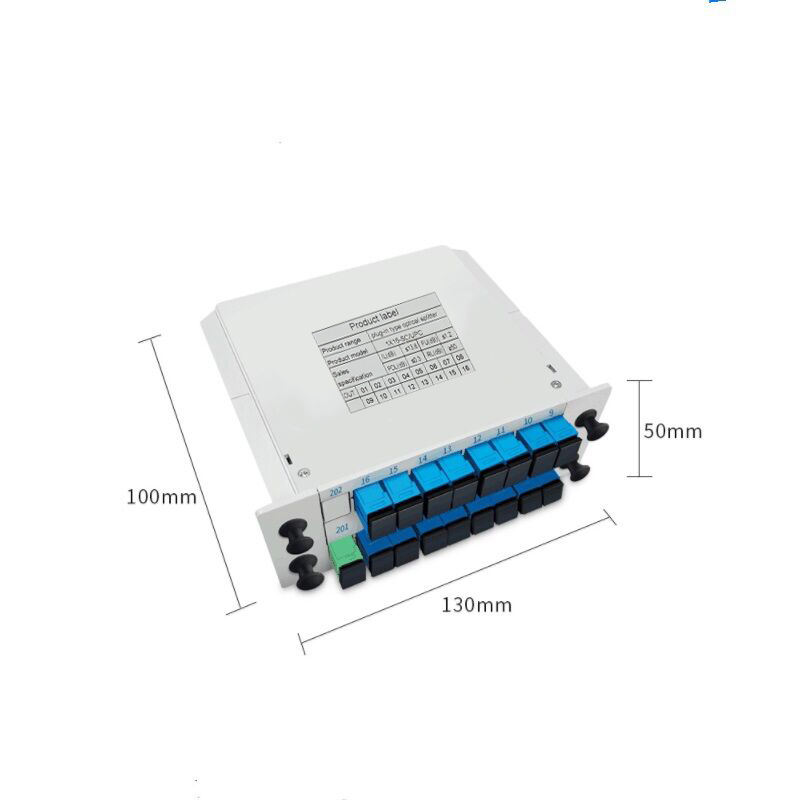

demision : 130x100x50mm

length : 1m/1m/customize

Contact Now

Splitter 1:16 Cassette LGX 130x100x50mm 1 input and 16 outputs with SC/APC adapter



Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.


Application

FTTH, LAN, PON & Optical CATV

Local ring net, Optical fiber communication system

Optical fiber test equipment, Optical fiber sensor



High speed and low loss Fiber Optical Plc Splitter

Parameter for PLC Splitter
Parameter 1x2 1x4 1x8 1x16 1x32 1x64
Attenuation Value(dB) ≤3.7 ≤7.5 ≤11 ≤14.5 ≤18 ≤22
Loss Uniformity(dB) ≤0.8 ≤0.8 ≤1.0 ≤1.4 ≤1.9 ≤2.5
Return Loss(dB) APC ≥60
UPC ≥60
PDL(dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Operating Temperature(oC) -40~85
Storage Temperature(oC) -40~85
Operating Bandwidth(nm) ±40
Operating Wavelength(nm) 1260~1650




Features
1).Low Insertion loss

2).Low PDL

3).Compact Design

4).Good channel-to-channel uniformity

5).Wide Operating Wavelength: 1260-1650nm

6).Wide Operating Temperature: -40°C - 85°C

7).High Reliability and Stability

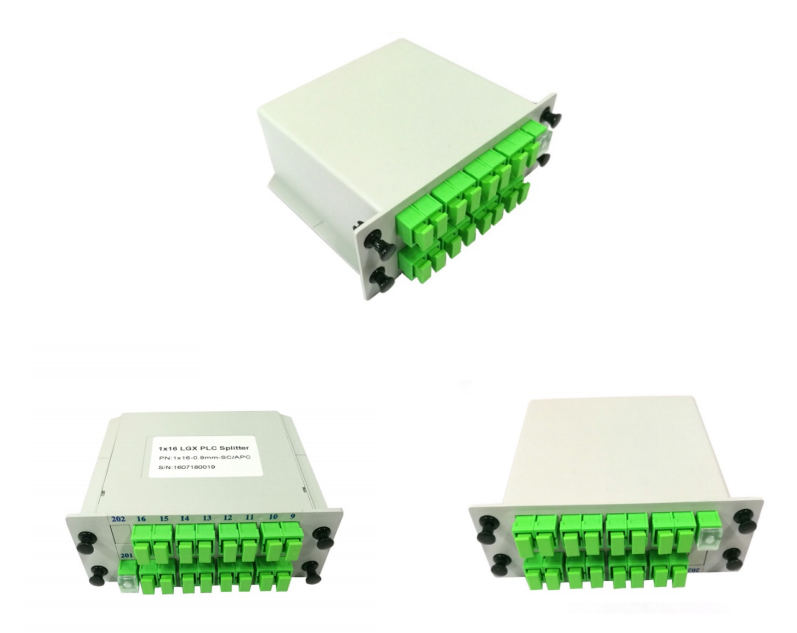

Cassette 1x16 PLC Splitter LGX 1 Input 16 Outputs With SC APC Adapter

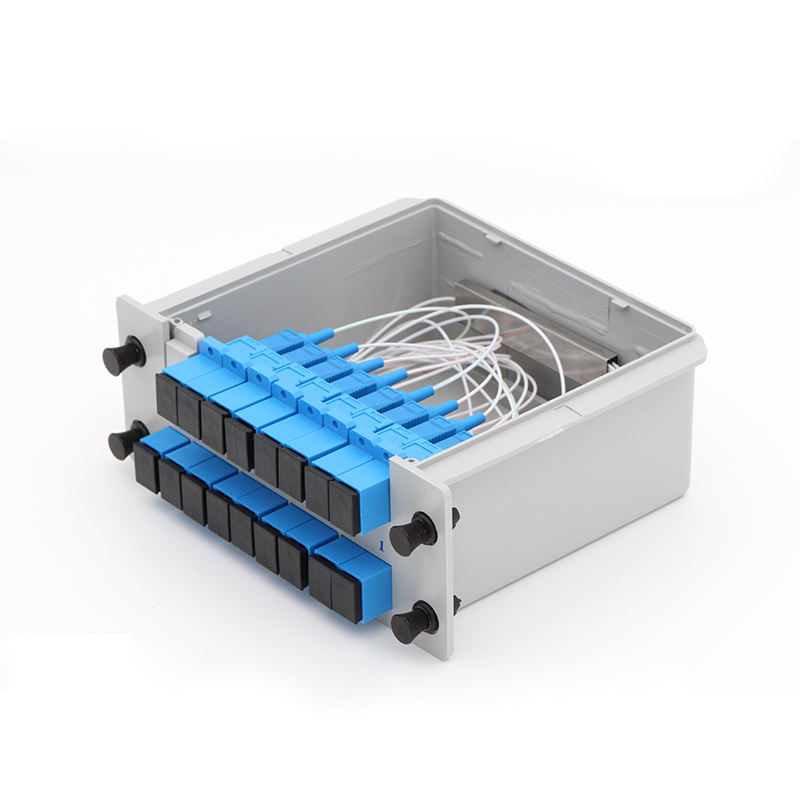

Cassette 1x16 PLC Splitter LGX 1 Input 16 Outputs With SC APC Adapter

Cassette 1x16 PLC Splitter LGX 1 Input 16 Outputs With SC APC Adapter
